FOSTEC/SCHOTT 特殊线光纤系列 | ||
|
线光纤（多个灯箱可调节控制系列） | ||
|
A08940 Download Sales Sheet | ||
 |

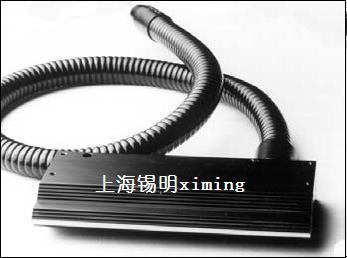

Spatially Randomized Lightlines
A patented exclusive! 24" and 40" lines of white light for web and line scanning
applications.
Features
1.Manufactured using a patented process called spatial randomization. Theprocess allows light from each input to be distributed over the entire lengthof the line. Therefore, should a light source fail while using multiple inputs,intensity is evenly reduced over the length of the line, rather than losing alllight in a section of the line.
2.Calibrated to ±15 gray scale levels at a mean of 200 with a gamma settingof 1.0 to deliver optimum uniformity. Refer to section 25.02.01for informationon uniformity of fiber optic products.
3.Assembly method accurately positions the fiber line within the body on allthree planes, to a tolerance of ± .004" (.1)*. The technique assures the fiberaxis will be parallel with the mounting surface of the body.
4.Standard input ferrule fits ColdVision Series light sources.
Can also be used with strobes.
5.The 24" (610) lightline accepts our dichroic filters and diffusers. To usecolor filters on the 40" (1016) line, part number A08931, color filteradapter, is required.
6.Rugged aluminum body with a black anodized finish.
7.Stainless steel tubing protects the fiber bundle.
8.Custom lengths, bundle exits, and line widths can be designed for yourunique requirements.
9.Lead-time may be required when ordering continuous lightlines and/or anycustom configuration of these products.
10.Cylindrical lenses are available. They are designed to collect light exitingthe lightline to increase intensity up to a factor of 10.
|
|
|
| ||
|
| ||
|
A08964 Download Sales Sheet | ||
 |
Spatially Randomized Lightlines
A patented exclusive! 24" and 40" lines of white light for web and line scanning
applications.
Features
1.Manufactured using a patented process called spatial randomization. Theprocess allows light from each input to be distributed over the entire lengthof the line. Therefore, should a light source fail while using multiple inputs,intensity is evenly reduced over the length of the line, rather than losing alllight in a section of the line.
2.Calibrated to ±15 gray scale levels at a mean of 200 with a gamma settingof 1.0 to deliver optimum uniformity. Refer to section 25.02.01for informationon uniformity of fiber optic products.
3.Assembly method accurately positions the fiber line within the body on allthree planes, to a tolerance of ± .004" (.1)*. The technique assures the fiberaxis will be parallel with the mounting surface of the body.
4.Standard input ferrule fits ColdVision Series light sources.
Can also be used with strobes.
5.The 24" (610) lightline accepts our dichroic filters and diffusers. To usecolor filters on the 40" (1016) line, part number A08931, color filteradapter, is required.
6.Rugged aluminum body with a black anodized finish.
7.Stainless steel tubing protects the fiber bundle.
8.Custom lengths, bundle exits, and line widths can be designed for yourunique requirements.
9.Lead-time may be required when ordering continuous lightlines and/or anycustom configuration of these products.
10.Cylindrical lenses are available. They are designed to collect light exitingthe lightline to increase intensity up to a factor of 10.
|
|
| ||
|
| ||
|
线光纤（45度） | ||
|
A24006 Download Sales Sheet | ||
 |
45o Lightline
Engineered and designed to emit light at a 45° angle along the length of the line.
Features
1.The output fibers are angled 30° to the nosepiece, as a result they are polishedon a bias, which causes emitted light to exit at 45° to the nosepiece.
2.The line can be positioned off-axis to the object, illuminate the field-of-view without loss of uniformity, while avoiding interference with the camera;an important consideration in space constrained systems.
3.Useful for illuminating a rectangular surface area where the features are perpendicular to the line body.
4.Standard input ferrule fits ColdVision Series light sources. Can also be used with strobes.
5.The lightline is calibrated to ± 8 gray scales at a mean of 200 with a gamma setting of 1.0, for optimum uniformity with DDL-lamp.
6.Assembly method accurately positions the fiber line within the body on all three planes, to a tolerance of ± .004"(.102). The technique assures the fiber axis will be parallel with the mounting surface of the body.
7.Rugged aluminum body with black anodized finish.
8.PVC covered metal tubing protects the fiber bundle.
9.Refer to section 25.02.01 for more information on uniformity of fiber optic products.
10.Custom configurations can be engineered for unique requirements.
11.The cylindrical and apertured lenses are adjustable and easy to attach.
|
|
|
| ||
|
| ||
