FOSTEC/SCHOTT 线光纤系列

A08912 Download Sales Sheet

Uniform lines of white light for Machine Vision and Inspection applications.

1. Calibrated with DDL-bulb to a specified number of gray scale levels (see chartbelow) at a mean of 200 with a gamma setting of 1.0 to deliver optimumuniformity. Refer to section 25.02.01 for information on uniformity of fiberoptic products.

2. Assembly method accurately positions the fiber line within the body onall three planes, to a tolerance of ± .004"(0.1)†. The technique assuresthe fiber axis will be parallel with the mounting surface of the body.

3. Fiber bundle exit locations include back-side (standard exit), back-center,and true-side.

4. Standard input ferrule fits ColdVision Series light sources.Can also be used with strobes.

5. Rugged aluminum body with black anodized finish.

6. PVC covered metal or stainless steel tubing protect the fiber bundle.

7. Lightline holders and support products available.

8. Custom lengths, bundle exits, line widths, and multiple combinations(dual, quad, etc.) can be designed for your unique requirements. Leadtime required.

Cylindrical and apertured lenses are available as standard products formost lightline models. They can be custom made for all models. Detailsare found in the Fiber Optic Accessories section of the product catalog.

A08975 Download Sales Sheet

Uniform lines of white light for Machine Vision and Inspection applications.

1.Calibrated with DDL-bulb to a specified number of gray scale levels (see chartbelow) at a mean of 200 with a gamma setting of 1.0 to deliver optimumuniformity. Refer to section 25.02.01 for information on uniformity of fiberoptic products.

2.Assembly method accurately positions the fiber line within the body onall three planes, to a tolerance of ± .004"(0.1)†. The technique assuresthe fiber axis will be parallel with the mounting surface of the body.

3.Fiber bundle exit locations include back-side (standard exit), back-center,and true-side.

4.Standard input ferrule fits ColdVision Series light sources.Can also be used with strobes.

5.Rugged aluminum body with black anodized finish.

6.PVC covered metal or stainless steel tubing protect the fiber bundle.

7.Lightline holders and support products available.

8.Custom lengths, bundle exits, line widths, and multiple combinations(dual, quad, etc.) can be designed for your unique requirements. Leadtime required.

9.Cylindrical and apertured lenses are available as standard products formost lightline models. They can be custom made for all models. Detailsare found in the Fiber Optic Accessories section of the product catalog.

A08826 Download Sales Sheet

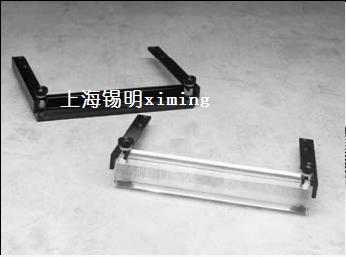

Apertured Lens, A08806, Cylindrical Lens, A08826
