SCHOTT 环形光纤系列（适用于Leica） | ||
|
A22040 Download Sales Sheet | ||
 |

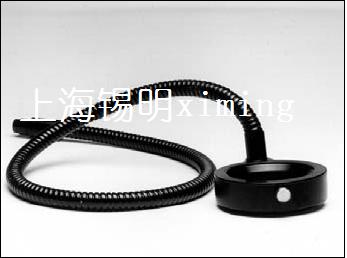

58 mm Ringlights
Designed to fit Nikon SMZ and Leica S4E and S6E microscopes.
Standard Features
1. Working distance is 1.5" to 6" (38 to 152).
2. 33" (838) bundle length on all models.
3. The ringlight body is made of rugged, black anodized aluminum and thefiber bundle is protected with flexible PVC covered metal tubing except theESD (Electro Static Discharge) models.
4. ESD ringlights are made conductive by replacing the black anodized finishwith a conductive finish and the PVC metal tubing with stainless steel tubing.
5. Each ringlight is checked for conductivity from inner body to light sourceadapter.
6. Vertical exit bundle increases work space and prevents the bundle from interfering with surrounding objects.

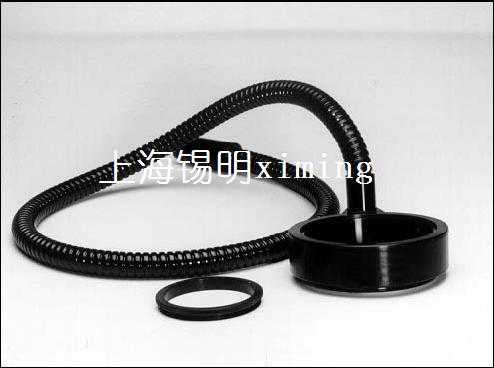

7. Retaining ring mounting for the A22040 ringlight offers secure positioning.
8. Thumbscrew clamping/mounting system for precise positioning on theA22050 & A22060 models. Ringlights fit directly onto microscope and camera objectives without adapters.
9. A22050 and A22060 ringlights will fit on all auxiliary lenses for the S4E and S6E microscopes.
10. Input fits all ColdVision light sources. Ringlights can be used with other manufacturer’s light sources. Adapters may be required.
11. Use ringlights with our Dichroic color filters, diffusers, polarizer/analyzers, and
reflector rings for alternative lighting effects.
12. Modified standard and custom ringlights are also available for all your uniquerequirements.
|
|
|
| ||
|
| ||
|
A22050 Download Sales Sheet | ||
 |
58 mm Ringlights
Designed to fit Nikon SMZ and Leica S4E and S6E microscopes.
Standard Features
13. Working distance is 1.5" to 6" (38 to 152).
14. 33" (838) bundle length on all models.
15. The ringlight body is made of rugged, black anodized aluminum and thefiber bundle is protected with flexible PVC covered metal tubing except theESD (Electro Static Discharge) models.
16. ESD ringlights are made conductive by replacing the black anodized finishwith a conductive finish and the PVC metal tubing with stainless steel tubing.
17. Each ringlight is checked for conductivity from inner body to light sourceadapter.
18. Vertical exit bundle increases work space and prevents the bundle from interfering with surrounding objects.
19. Retaining ring mounting for the A22040 ringlight offers secure positioning.
20. Thumbscrew clamping/mounting system for precise positioning on theA22050 & A22060 models. Ringlights fit directly onto microscope and camera objectives without adapters.
21. A22050 and A22060 ringlights will fit on all auxiliary lenses for the S4E and S6E microscopes.
22. Input fits all ColdVision light sources. Ringlights can be used with other manufacturer’s light sources. Adapters may be required.
23. Use ringlights with our Dichroic color filters, diffusers, polarizer/analyzers, and
reflector rings for alternative lighting effects.
24. Modified standard and custom ringlights are also available for all your uniquerequirements.
|
|
|
| ||
|
| ||
