SCHOTT 环形光纤系列（适用于Nikon）

For intense, uniform, and shadow-free illumination.

Standard Features

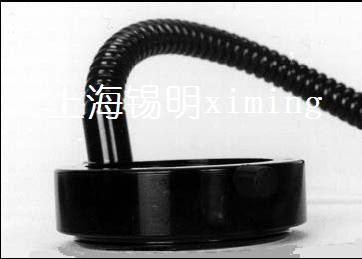

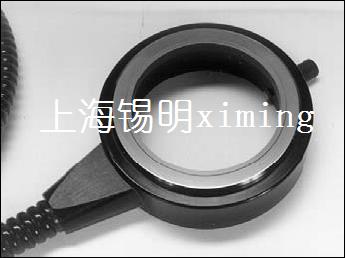

1. Ringlights fit 66 mm microscope and camera objectives. Also shown on thissheet is a tapered inner-body ringlight for the Nikon SMZ 645/600microscope. See model number A22040^.

2. Working distance is 1.5" to 6" (38 to 152).

3. 33" (838) bundle length on all models.

4. The ringlight body is made of rugged, black anodized aluminum and thefiber bundle is protected with flexible PVC covered metal tubing except the ESD (Electro Static Discharge) models.

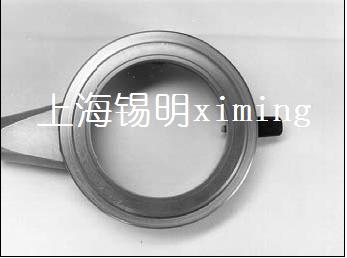

5. ESD ringlights are made conductive by replacing the black anodized finish with a conductive finish and the PVC metal tubing with stainless steel tubing.Each ringlight is checked for conductivity from inner body to light source adapter.

6. Thumbscrew clamping/mounting system for precise positioning (except formodel number A22040). Ringlights fit directly onto most microscope andcamera objectives without adapters.

7. Clamp rings for the Universal ringlights also fit the 66 mm ringlights for use with a different diameter objective microscope or with the Ringlight Holder.(See the Support Apparatus for Ringlights section of the catalog for more information.)

8. Input fits all ColdVision light sources. Ringlights can be used with other manufacturer’s continuous light sources. Adapters may be required.

9. Use ringlights with our Dichroic color filters, diffusers, polarizer/analyzers and reflector rings for alternative lighting effects.

10. Modified standard and custom ringlights are also available for all your unique requirements.
