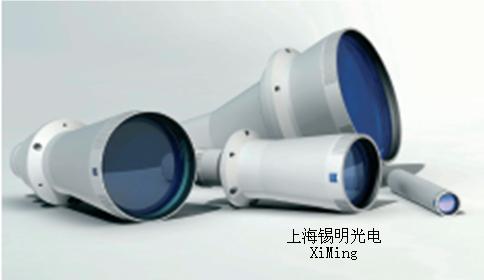

Carl Zeiss远心镜头简介:
In many areas of industrial metrology,automation technology, in-process inspection and control, and in quality management, the proportion or optical, non-contact processes now being used to identify, test and measure complex structures is increasing. Such advanced measuring and inspection tasks as the application described here can only be performed using high-resolution CCD camera systems and telecentric precision lenses. The exacting demands made on the measuring system are met by the virtually distortion-free VISOIONMES lenese. Telecentric viewing and the measurement of relevant production processes eliminate the need for costly and time-consuming alignment and testing processes for the user, and higher quality is achieved in the entire production process and therefore also in the products themselves.
VISIONMES远心镜头的优势：
1. Distortion-free imaging over the entire object field.
2. HDTV quality-a high information transfer rate for the use of VISIONMES lenses in new- generation CCD receivers.
3. Diffraction-limited imaging for maximum resolution.
4. High aperature for short frame grabbing times.
5. Stopping down-optimum adaptation of edge contour and depth of focus to the measuring object.
6. Low sensitivity to stray light.
7. Modular design permitting the connection of any standard CCD matrix.
8. Graduated object fields up to
|
| |||
|
Carl Zeiss Techneische Lens | |||
| VISIONMES 11/8/0.01 Download Sales Sheet | |||
|
|
CCD chip size: 1/2”
Working distance: 160mm
Telemetric range: +/-9mm
Depth of focus: +/-6mm
Image scale(IF:OF): 1:1.38
Measuring field: 6×8mm
Pixel size(μm×μm): 8.6×8.3 |
| |
| |||
|
| |||
|

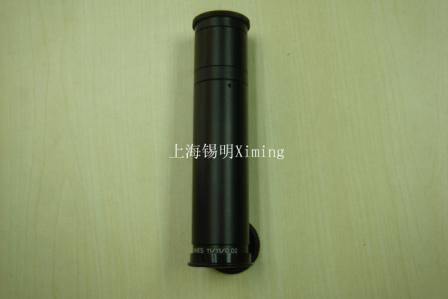

VISIONMES 11/11/0.02 Download Sales Sheet | |||
 |
CCD chip size: 2/3”
Working distance: 54mm
Telemetric range: +/-2.5mm
Depth of focus: +/-1.25mm
Image scale(IF:OF): 1:1
Measuring field: 6×8mm
Pixel size(μm×μm): 13.6×11.6 |
| |
|
| |||
|
| |||
|
VISIONMES 11/11/0.02(o) Download Sales Sheet | |||
|
|
CCD chip size: 2/3”
Working distance: 17mm
Telemetric range: +/-5mm
Depth of focus: +/-1.25mm
Image scale(IF:OF): 1:1
Measuring field: 6×8mm
Pixel size(μm×μm): 13.6×11.6 |
| |
|
| |||
|
| |||
|
VISIONMES 11/11/0.02(b) Download Sales Sheet | |||
|
|
CCD chip size: 2/3”
Working distance: 54mm
Telemetric range: +/-5mm
Depth of focus: +/-1.25mm
Image scale(IF:OF): 1:1
Measuring field: 6×8mm
Pixel size(μm×μm): 13.6×11.6 |
| |
|
| |||
|
| |||
|
VISIONMES 13/11/0.01 Download Sales Sheet | |||
|
|
CCD chip size: 2/3”
Working distance: 65mm
Telemetric range: +/-2mm
Depth of focus: +/-1mm
Image scale(IF:OF): 1:1.18
Measuring field: 8×10mm
Pixel size(μm×μm): 13.6×11.6 |
| |
|
| |||
|
| |||
|
VISIONMES 22/11/0.05 Download Sales Sheet | |||
|
|
CCD chip size: 2/3”
Working distance: 66mm
Telemetric range: +/-2.5mm
Depth of focus: +/-2mm
Image scale(IF:OF): 1:2
Measuring field: 13×17mm
Pixel size(μm×μm): 13.6×11.6 |
| |
| |||
|
| |||
|
VISIONMES 22/11/0.05 (o) Download Sales Sheet | |||
|
|
CCD chip size: 2/3”
Working distance: 56mm
Telemetric range: +/-5mm
Depth of focus: +/-2mm
Image scale(IF:OF): 1:2
Measuring field: 13×17mm
Pixel size(μm×μm): 13.6×11.6 |
| |
|
| |||
|
| |||
|
VISIONMES 18/11/0.05 Download Sales Sheet | |||
|
|
CCD chip size: 1/3”
Working distance: 66mm
Telemetric range: +/-10mm
Depth of focus: +/-3mm
Image scale(IF:OF): 1:3
Measuring field: 10×14mm
Pixel size(μm×μm): 7.4×7.4 |
| |
|
| |||
|
| |||
|
VISIONMES 35/6/0.01 Download Sales Sheet | |||
 |
CCD chip size: 1/3”
Working distance: 67mm
Telemetric range: +/-2.5mm
Depth of focus: +/-7.5mm
Image scale(IF:OF): 1:5.87
Measuring field: 20×27mm
Pixel size(μm×μm): 7.4×7.4 |
| |
| |||
|
| |||
|
VISIONMES 35/8/0.01 Download Sales Sheet | |||
|
|
CCD chip size: 1/2”
Working distance: 64mm
Telemetric range: +/-2mm
Depth of focus: +/-4mm
Image scale(IF:OF): 1:4.375
Measuring field: 21×28mm
Pixel size(μm×μm): 8.6×8.3 |
| |
|
| |||
|
| |||
|
VISIONMES 35/11/0.01 Download Sales Sheet | |||
|
|
CCD chip size: 2/3”
Working distance: 58mm
Telemetric range: +/-1.4mm
Depth of focus: +/-2mm
Image scale(IF:OF): 1:3.181
Measuring field: 21×28mm
Pixel size(μm×μm): 6.8×6.8 |
| |
|
| |||
|
| |||
|

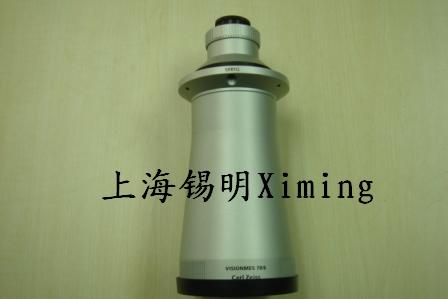

VISIONMES 70/6/0.1 Download Sales Sheet | |||
 |
CCD chip size: 1/3”
Working distance: 54mm
Telemetric range: +/-5mm
Depth of focus: +/-1.25mm
Image scale(IF:OF): 1:1
Measuring field: 6×8mm
Pixel size(μm×μm): 13.6×11.6 |
| |
|
| |||
|
| |||
|
VISIONMES 70/8/0.1 Download Sales Sheet | |||
 |
CCD chip size: 1/2”
Working distance: 103mm
Telemetric range: +/-10.5mm
Depth of focus: +/-16mm
Image scale(IF:OF): 1:8.75
Measuring field: 43×55mm
Pixel size(μm×μm): 8.6×8.3 |
| |
|
| |||
|
| |||
|
VISIONMES 70/11/0.1 Download Sales Sheet | |||
 |
CCD chip size: 2/3”
Working distance: 75mm
Telemetric range: +/-8mm
Depth of focus: +/-9mm
Image scale(IF:OF): 1:6.363
Measuring field: 43×55mm
Pixel size(μm×μm): 13.6×11.6 |
| |
| |||
|
| |||
|
VISIONMES 70/16/0.1 Download Sales Sheet | |||
|
|
CCD chip size: 1”
Working distance: 58mm
Telemetric range: +/-4mm
Depth of focus: +/-4mm
Image scale(IF:OF): 1:4.38
Measuring field: 40×40mm
Pixel size(μm×μm): 9×9 |
| |
|
| |||
|
| |||
|

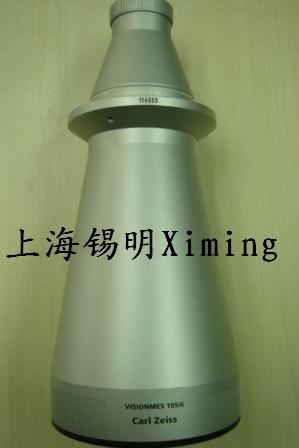

VISIONMES 105/6/0.1 Download Sales Sheet | |||
 |
CCD chip size: 1/3”
Working distance: 182mm
Telemetric range: +/-16mm
Depth of focus: +/-50mm
Image scale(IF:OF): 1:17.5
Measuring field: 62×82mm
Pixel size(μm×μm): 7.4×7.4 |
| |
|
| |||
|
| |||
|

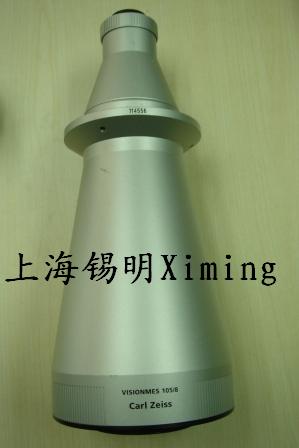

VISIONMES 105/8/0.1 Download Sales Sheet | |||
 |
CCD chip size: 1/2”
Working distance: 171mm
Telemetric range: +/-12mm
Depth of focus: +/-33mm
Image scale(IF:OF): 1:13.125
Measuring field: 65×83mm
Pixel size(μm×μm): 8.6×8.3 |
| |
| |||
|
| |||
|
VISIONMES 105/11/0.1 Download Sales Sheet | |||
 |
CCD chip size: 2/3”
Working distance: 121mm
Telemetric range: +/-10mm
Depth of focus: +/-20mm
Image scale(IF:OF): 1:9.545
Measuring field: 65×83mm
Pixel size(μm×μm): 6.8×6.8 |
| |
|
| |||
|
| |||
|
VISIONMES 150/8/0.1(+) Download Sales Sheet | |||
|
|
CCD chip size: 1/2”
Working distance: 225mm
Telemetric range: +/-35mm
Depth of focus: +/-75mm
Image scale(IF:OF): 1:18.75
Measuring field: 93×118mm
Pixel size(μm×μm): 8.6×8.3 |
| |
|
| |||
|
| |||
|
VISIONMES 150/11/0.1(+) Download Sales Sheet | |||
|
|
CCD chip size: 2/3”
Working distance: 165mm
Telemetric range: +/-25mm
Depth of focus: +/-38mm
Image scale(IF:OF): 1:13.64
Measuring field: 90×120mm
Pixel size(μm×μm): 6.8×6.8 |
| |
|
| |||
|
| |||
|
|
CCD chip size: 1”
Working distance: 110mm
Telemetric range: +/-20mm
Depth of focus: +/-17mm
Image scale(IF:OF): 1:9.38
Measuring field: 86×86mm
Pixel size(μm×μm): 9×9 |
| |
|
| |||
|
| |||
|
VISIONMES 225/8/0.1(+) Download Sales Sheet | |||
|
|
CCD chip size: 1/2”
Working distance: 340mm
Telemetric range: &, ;, ;, ;nbs, p; +/-55mm
Depth of focus: +/-165mm
Image scale(IF:OF): 1:28.13
Measuring field: 140×177mm
Pixel size(μm×μm): 8.6×8.3 |
| |
| |||
|
| |||
|
VISIONMES 225/11/0.1(+) Download Sales Sheet | |||
|
|
CCD chip size: 2/3”
Working distance: 250mm
Telemetric range: +/-40mm
Depth of focus: +/-90mm
Image scale(IF:OF): 1:20.45
Measuring field: 135×180mm
Pixel size(μm×μm): 6.8×6.8 |
| |
|
| |||
|
| |||
|
VISIONMES 300/8/0.1(+) Download Sales Sheet | |||
|
|
CCD chip size: 1/2”
Working distance: 450mm
Telemetric range: +/-75mm
Depth of focus: +/-300mm
Image scale(IF:OF): 1:37.50
Measuring field: 187×236mm
Pixel size(μm×μm): 8.6×8.3 |
| |
|
| |||
|
| |||
|
VISIONMES 300/11/0.1(+) Download Sales Sheet | |||
|
|
CCD chip size: 2/3”
Working distance: 335mm
Telemetric range: +/-55mm
Depth of focus: +/-150mm
Image scale(IF:OF): 1:27.27
Measuring field, : 180×240mm
Pixel size(μm×μm): 6.8×6.8 |
| |
| |||
|
| |||
|
VISIONMES 300/16/0.1(+) Download Sales Sheet | |||
|
|
CCD chip size: 1”
Working distance: 230mm
Telemetric range: +/-40mm
Depth of focus: +/-60mm
Image scale(IF:OF): 1:18.75
Measuring field: 172×172mm
Pixel size(μm×μm): 9×9 |
| |
|
| |||
|
| |||
|
VISIONMES 6/18/0.029 Download Sales Sheet | |||
|
|
CCD chip size:
Working distance: 85mm
Telemetric range: +/-1mm
Depth of focus: +/-0.1mm
Image scale(IF:OF): 3:1
Measuring field: 2×3mm
Pixel size(μm×μm): 6.8×6.8 |
| |
|
| |||
|
| |||
(O):=（Object side 900 angled ）
(b):=（image side 900 angled ）
(+):=（Object with adjustable Blended ）
